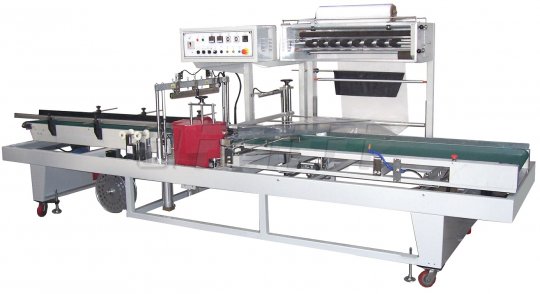

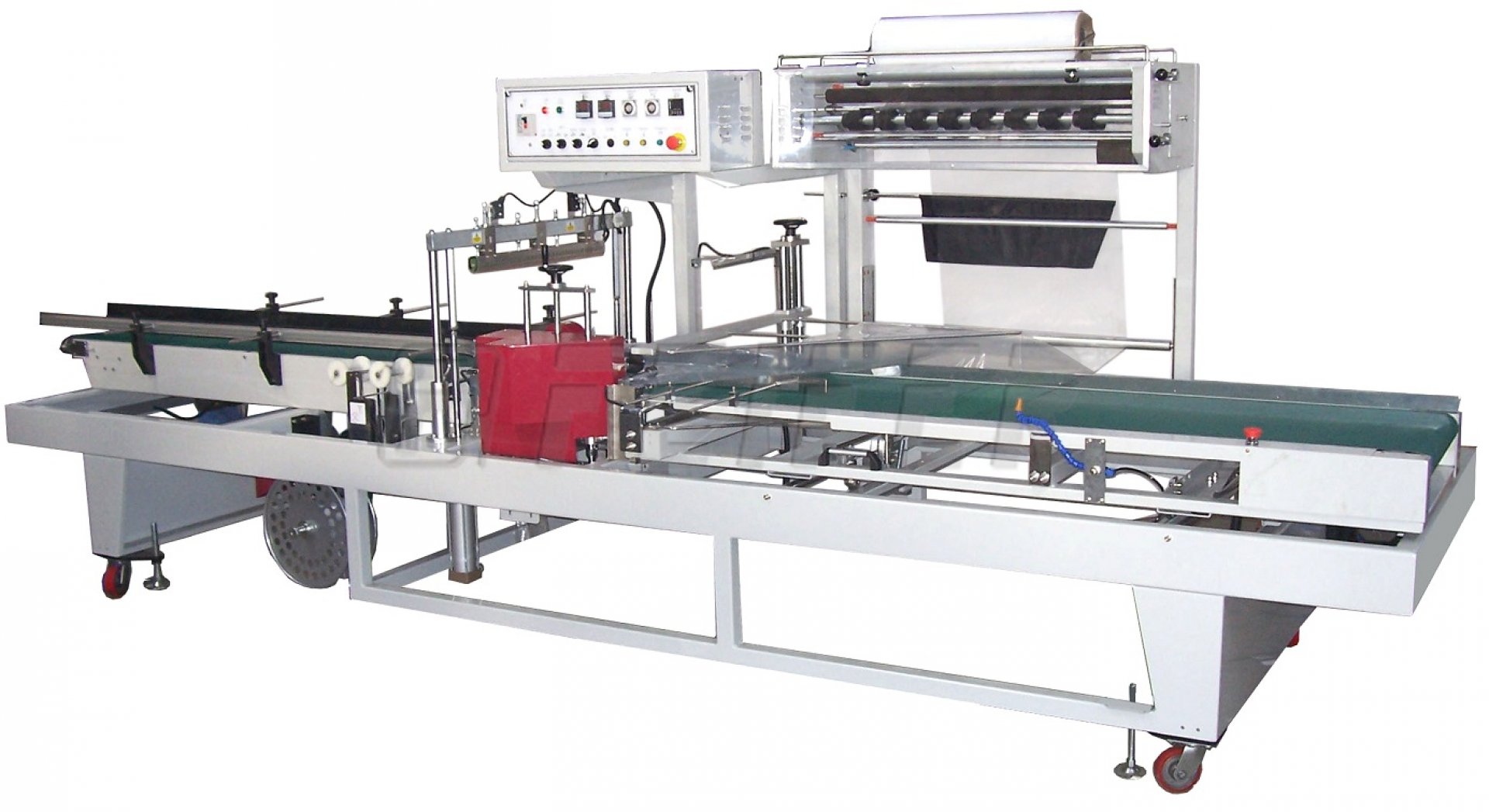

TY-701-3000L-06 LONG PACKER II. - automatic film wrapping machine
Automatic wrapping machine TY-701-3000L-06 LONG PACKER II for PE, POF foils with side endless weld. The machine is suitable for medium or small frequency wrapping jobs (max 12 cycles/min). The machine is designed for wrapping long objects e.g. wooden boards, carpet rolls, pipes, etc.
Among main advantages of this wrapping machine belong:
- sealing jaws with pneumatic recline
- permanently heated sealing jaw
- high-performance, adjustable system of side-welding
- fluently adjusted sealing time
- independent temperature regulation
- PLC machine control
- foil perforating system for easy shrinking in a tunnel
- fluently adjusted conveyor speed
- teflon welding jaw (long life)
- optical scanning of wrapping object (vertical/horizontal scanning)
There is a possibility of choosing a program by time sequence using. Easy operating. The machine is indended for using with a proper shrink tunnel.
Technical parameters
Modification
Accessories
Inquiry
Technical parameters
| ordering code | 700 011456 |
| supply voltage | 240V/50Hz |
| max. wrapping height | 20 - 120 mm |
| power input | 2,5 kW |
| compressed air | 4 - 8 bar |
| material - foil |
PE POF |
| film thickness | 35 µm |
| max. packing width | 50 - 250 mm |
| machine length | 4500 mm |
| machine width | 1000 mm |
| machine height | 1580 mm |
| weight | 450 kg |
Standard modifications
TY-701-120S - automatic film wrapping machine
- for wrapping consumer goods
- for POF and PE films
- fully closed compact wrapping
- max. capacity 25 cycles/min.
Recommended accessories
Driven belt conveyor 4000x400 mm
- fluent speed regulation
- track width - 400 mm
- conveyor length - 4 m
