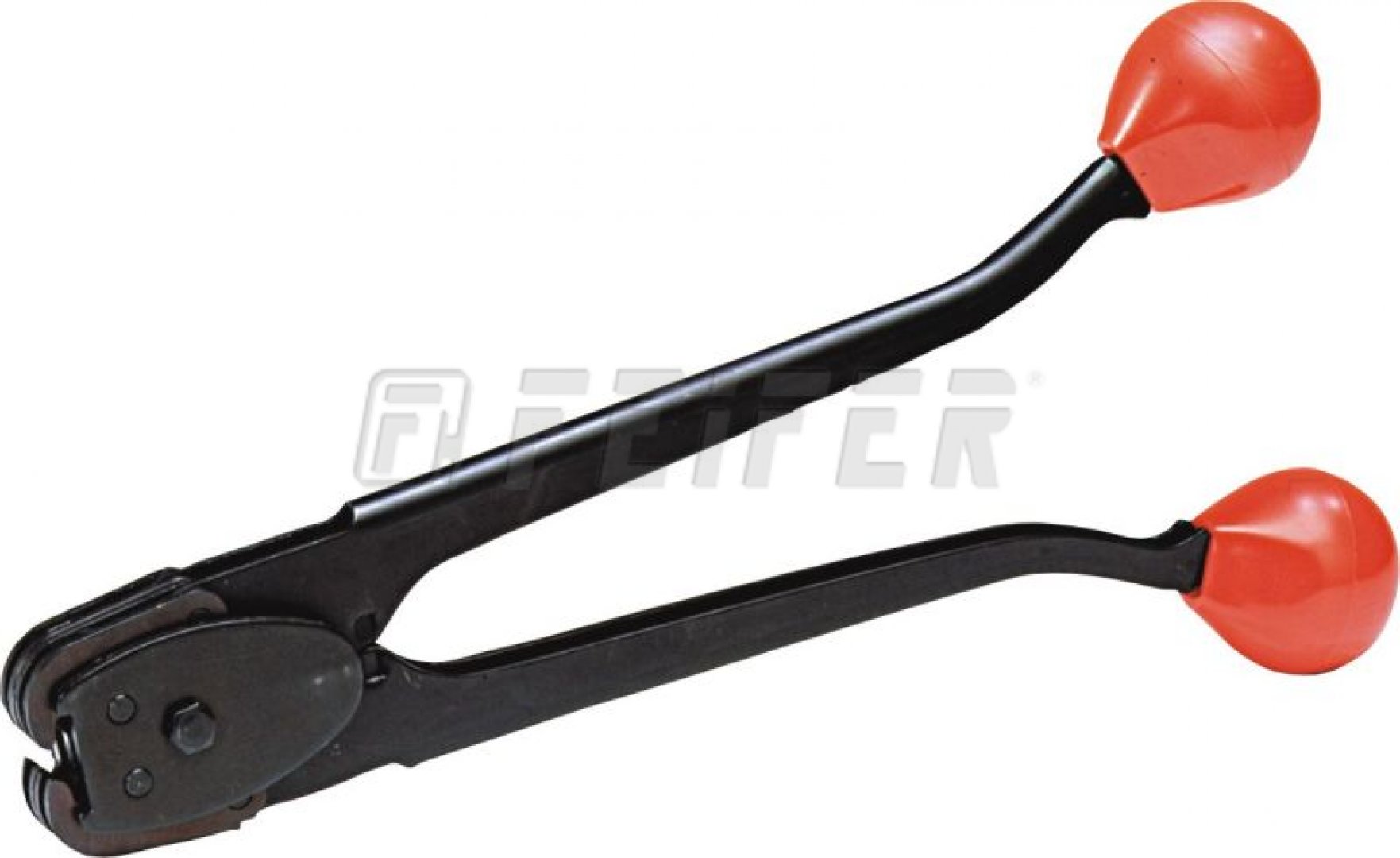

UK-1/10 - strapping sealer for steel seals
This sealer UK-1/10 is intended for strapping heavy objects e.g. steel profile, wood bundles, etc. and is especially used for strapping round or irregularly shaped objects. This sealer is used only together with a suitable tensioner (e.g. type NP-11). Steel strap and seal type FP are used for strapping. This model is intended for strapping with strap and seal of the width of 10 mm.
Technical parameters
Modification
Accessories
Spare part
Inquiry
Technical parameters
| ordering code | 700 007810 |
| sealing method | seal type FP |
| strap width | 10 mm |
| strap thickness | 0,4 - 0,6 mm |
| weight | 1,0 kg |
| dimension (l x w x h) | 320 x 150 x 50 mm |
Standard modifications
UK-1/13 - strapping sealer for steel seals
- strap width - 13 mm
- sealing method - seal type FP
- for heavy irregular objects using with suitable tensioner
UK-1/16 - steel strapping sealer for steel seals 16 mm
- strap width - 16 mm
- sealing method - seal type FP
- for heavy irregular objects
- using with suitable tensioner
UK-1/19 - strapping sealer for steel seals
- strap width - 19 mm
- sealing method - seal type FP
- for heavy irregular objects
- using with suitable tensioner
Recommended accessories
NP-11 - tensioner for steel straps
- strap width 13 - 19 mm
- used together with a sealer UK
- for heavy irregular objects
- max. strength of joint 5000 N
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-5 - decoiler for ribbon steel straps
- strap width 13-20 mm
- spring brake of strap
- inner diameter 260-310 mm
- robust construction
OP-7 - decoiler for oscillated steel straps
- strap width - 13 - 20 mm
- spring brake of strap
- for oscillated winding
- robust construction
OP-21 - decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 610 mm
- unsuitable for low quality straps
OP-26 decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- unsuitable for low quality straps
OP-26E decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- for low frequency jobs
OP-26W decoiler for ribbon steel straps
- strap width - 13 - 20 mm
- unlimited inner diameter
- max. outer diameter - 790 mm
- unsuitable for low quality straps
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
