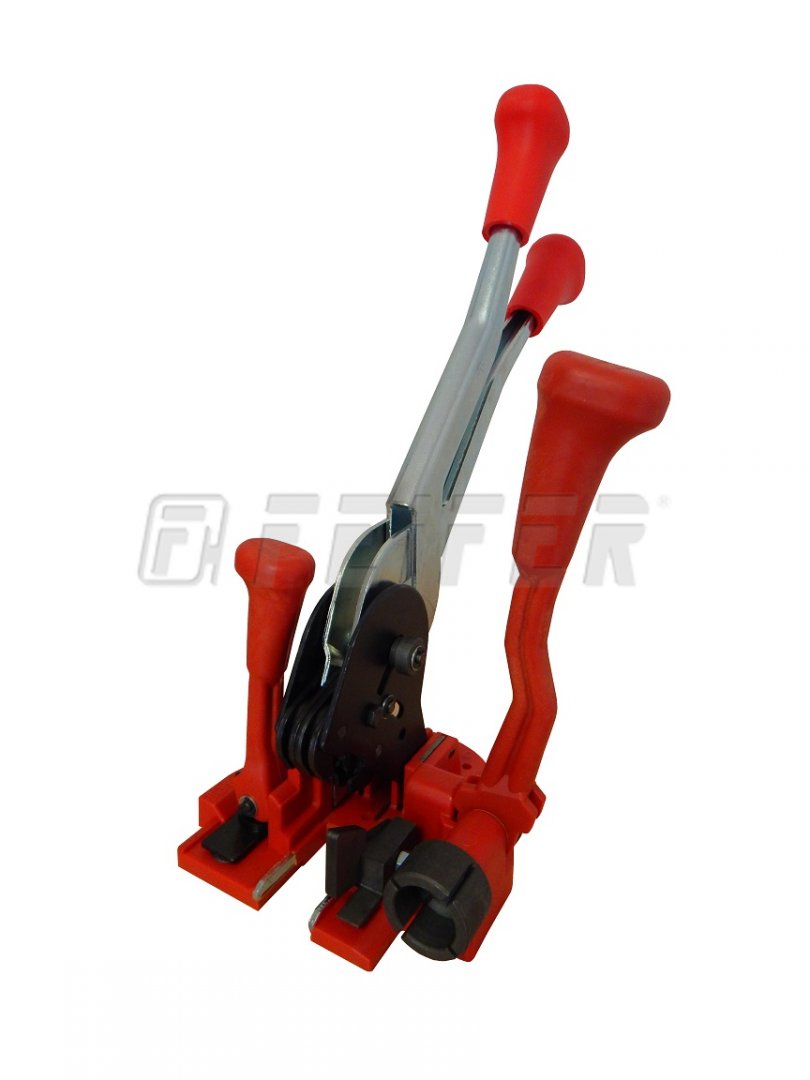

XL-13 - strapping tool for PP straps
This strapping tool XL-13 Best is similar to the strapping tool PP-10F or PP-12F and is intended for lighter goods on pallets. PP strap of the width of 12 or 15 (16) mm (according to modification) is used for strapping and joint is made with steel seal.
The construction of XL strapping tools has a robust metal construction and the plastic surface prevents abrasion of packaged items.
This tool is equipped with gearing, which increases the tightening power while tightening the strap - moreover, the additional rotary shaft avoids unwanted inserting the strap under closing jaws.
In our assortment you can find strapping tools PPU, which are economical modification of strapping tools XL and are intended for low frequency strapping jobs. This modification is inteded for strap of the width of 12 mm.
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 700 010506 |
| sealing method | seal type PP-13 |
| strap - material |
PP |
| strap width | 12 - 13 mm |
| strap thickness | 0,4 - 0,85 mm |
| weight | 3,5 kg |
| dimension (l x w x h) | 170 x 150 x 350 mm |
Standard modifications
XL-9 - strapping tool for PP straps
- strap width - 8 (9) mm
- sealing method - seal type PP-9
- for light goods on pallets
- robust design
XL-16 - strapping tool for PP straps
- strap width - 15 (16) mm
- sealing method - seal type PP-16
- for light goods on pallets
- robust design
XL-19 - strapping tool for PP straps
- strap width - 19 mm
- sealing method - seal type PP-19
- for light goods on pallets
- robust design
PLY-13 - strapping tool for PP straps
- strap width - 12 (13) mm
- sealing method - seal type PP-13
- for low frequency jobs
- economical model to XL
PLY-16 - strapping tool for PP straps
- strap width - 15 (16) mm
- sealing method - seal type PP-16
- for low frequency jobs
- economical model to XL
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
Steel seals PP-13 (13 mm)
- seal width - 12 mm
- for PP strap
- packaging - 2500 pcs
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 400 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2000N
- tube 406 mm, roll 2200 m
PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 1850 N
- tube 406 mm, roll 2000 m
