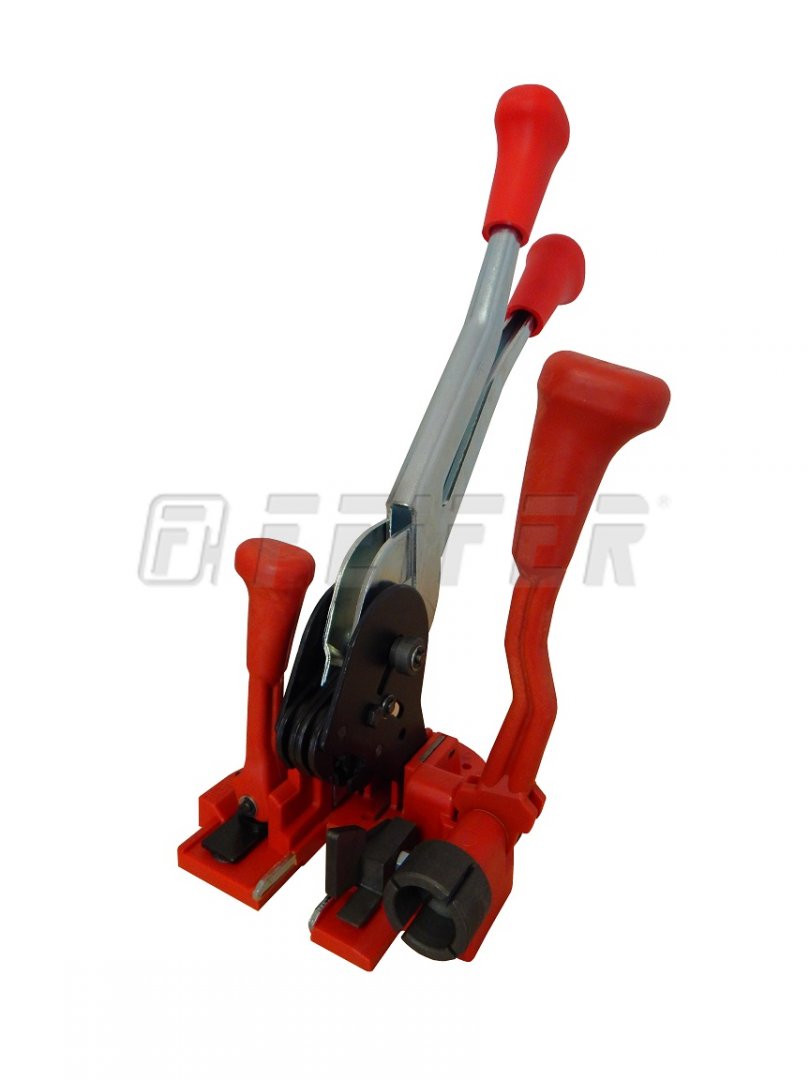

XL-9 - strapping tool for PP straps

This strapping tool XL-9 Best is similar to the strapping tool PP-10F or PP-12F and is intended for lighter goods on pallets. PP strap of the width of 8 (9) mm (according to modification) is used for strapping and joint is made with steel seal.

The construction of XL strapping tools has a robust metal construction and the plastic surface prevents abrasion of packaged items.

This tool is equipped with gearing, which increases the tightening power while tightening the strap - moreover, the additional rotary shaft avoids unwanted inserting the strap under closing jaws.

Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry

Technical parameters

ordering code 700 010504
sealing method seal type PP-9
strap - material PP
PET
strap width 8 - 9 mm
strap thickness 0,4 - 0,85 mm
weight 3,5 kg
dimension (l x w x h) 170 x 150 x 350 mm

Standard modifications

XL-13 - strapping tool for PP straps

XL-13 - strapping tool for PP straps
  • strap width - 12 (13) mm
  • sealing method - seal type PP-13
  • for light goods on pallets
  • robust design

XL-16 - strapping tool for PP straps

XL-16 - strapping tool for PP straps
  • strap width - 15 (16) mm
  • sealing method - seal type PP-16
  • for light goods on pallets
  • robust design

XL-19 - strapping tool for PP straps

XL-19 - strapping tool for PP straps
  • strap width - 19 mm
  • sealing method - seal type PP-19
  • for light goods on pallets
  • robust design

PLY-13 - strapping tool for PP straps

PLY-13 - strapping tool for PP straps
  • strap width - 12 (13) mm
  • sealing method - seal type PP-13
  • for low frequency jobs
  • economical model to XL

PLY-16 - strapping tool for PP straps

PLY-16 - strapping tool for PP straps
  • strap width - 15 (16) mm
  • sealing method - seal type PP-16
  • for low frequency jobs
  • economical model to XL

Recommended accessories

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-6 - decoiler for PP straps

OP-6 - decoiler for PP straps
  • inner diameter - 400 mm
  • spring brake of strap
  • extra robust construction
  • for high frequency jobs

OP-6E - decoiler for PP straps

OP-6E - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • simple screw brake on axis
  • for low frequency jobs

OP-6EB - decoiler for PP straps

OP-6EB - decoiler for PP straps
  • inner diameter - 200 and 400 mm
  • spring brake of strap
  • for low frequency jobs

OP-10EB - decoiler for PP straps

OP-10EB - decoiler for PP straps
  • inner diameter - 200 mm
  • spring brake of strap
  • for low frequency jobs

Strap lance

Strap lance
  • max. strap width - 35 mm
  • easy strap threading under pallet
  • for plastic and textile strap

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

Steel seals PP-9 (9 mm)

Steel seals PP-9 (9 mm)
  • seal width - 9 mm
  • for PP strap
  • packaging - 1000 pcs

PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, black

PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, black
  • width 8 mm, thickness 0,55 mm
  • black color
  • strength 950 N
  • tube 200 mm, roll 4500

PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, white

PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, white
  • width 8 mm, thickness 0,55 mm
  • white color
  • strength 950 N
  • tube 200 mm, roll 4500
