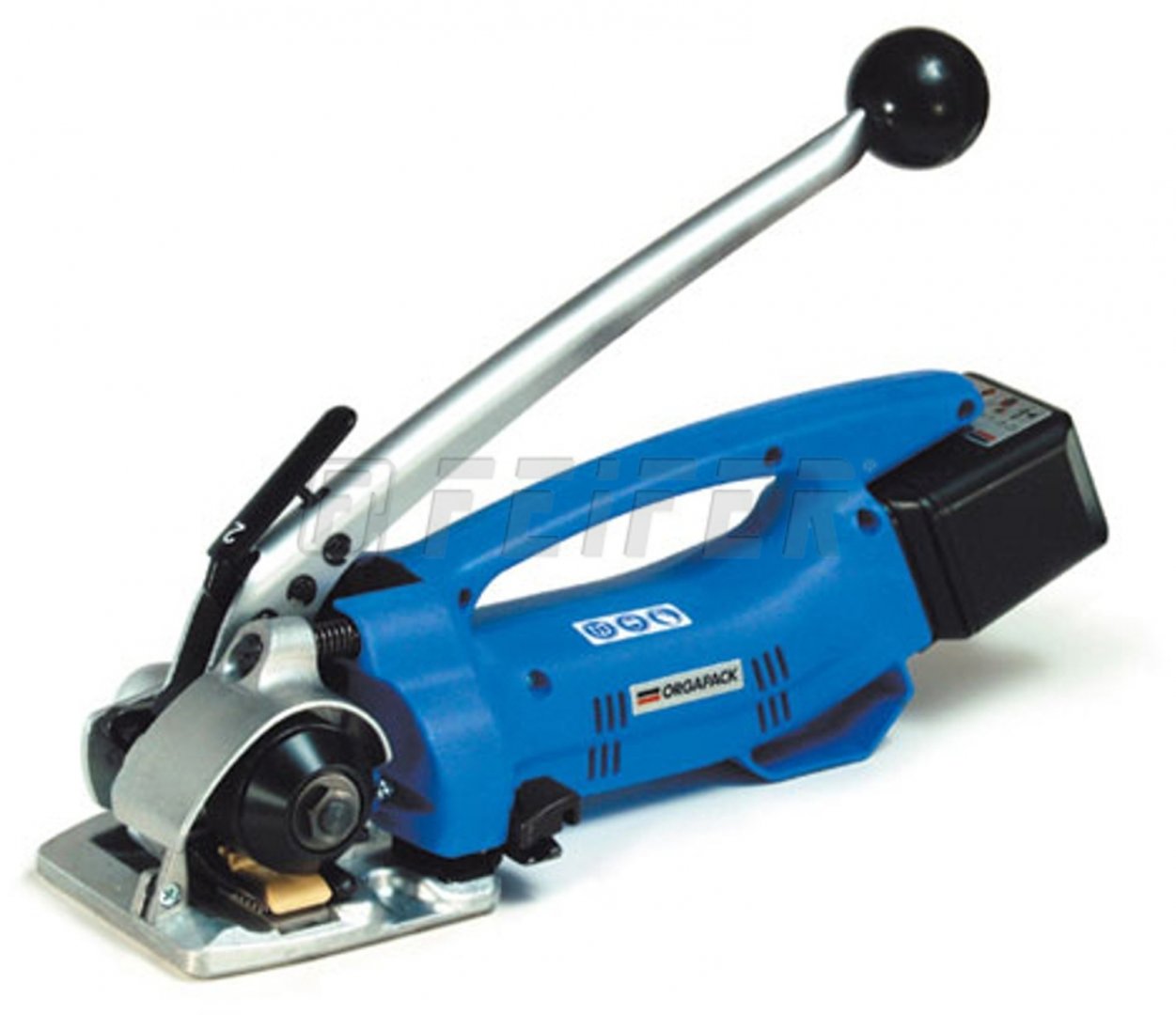

OR-T50 - battery strapping tool for PP, PET straps
Hand-operated battery strapping tool OR-T50 which is suitable for strapping pallets or groups of goods. PP and PET straps are used for strapping. This strapping tool is suitable for places, where it is not possible to connect to power supply, and is equipped with manual tightening and automatic sealing straps.
Among main advantages of this strapping tool belong:
- easy use (The operator lead the strap around the packaged item and put into strapping slot. Then the strap will be manuály tightened by lever and friction sealed after pushing of button.)
- luently adjustable tightening power
- mobile use
Delivery includes battery and charger.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 001094 |
| strap - material |
PP |
| supply voltage | aku 12V |
| strap width | 9 - 19 mm |
| strap thickness | 0,5 - 1,0 mm |
| weight | 4 kg |
| sealing method | sealless |
| tightening power | max. 2300 N |
| qty of strapping cycles with 1 charge | 200 |
| battery charge time | 12 min. hour |
| battery life – No. of charging cycles | 3000 |
Standard modifications
OR-T 130 - battery strapping tool for PP, PET strap
- strap width 9 - 13 mm
- 18V Li-Ion high-capacity battery
- tightening power up to 1200N
- heavy duty construction
OR-T 260 - battery strapping tool for PP, PET strap
- strap width 12 - 16 mm
- 18V Li-Ion high-capacity battery
- high tightening power (2500N)
- heavy duty construction
OR-T 450 - battery strapping tool for PP, PET strap
- strap width 16 - 19 mm
- 18V Li-Ion high-capacity battery
- high tightening power (4500N)
- heavy duty construction
Action
ZAPAK ZP90 - battery strapping tool for PP, PET
- strap width 9 - 13 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Action
ZAPAK ZP93 - battery strapping tool for PP, PET
- strap width 9 - 16 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Action
ZAPAK ZP97 - battery strapping tool for PP, PET
- strap width 15 - 19 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
ZP-5 - spring balancer for loading
- max. loading - 1-5 kg
- robust metal model (alloy)
- pre-tensioning by ergonom. rose
- safety device in case of break
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green
- width 12 mm, thickness 0,60 mm
- green color
- strength 2600 N
- tube 406 mm, roll 2500 m
PET strap 15,0 x 0,80 mm, 406/150 mm - 1400 m, 4550 N, EMBOSS 20%
- width 15 mm, thickness 0,80 mm
- green color
- strength 4550 N
- tube 406 mm, roll 1400 m
PET strap 15,5 x 0,70 mm, 406/145 - 1750 m, 3860 N, green
- width 15,5 mm, thickness 0,70 mm
- green color
- strength 4500 N
- tube 406 mm, roll 1750 m
PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%
- width 16 mm, thickness 1,00 mm
- green color
- strength 5700 N
- tube 406 mm, roll 1200 m
PET strap 19 x 1,00 mm, 406/145 - 850 m, 8000 N, green, EMBOSS 20%
- width 19 mm, thickness 1,00 mm
- green color
- strength 8000 N
- tube 406 mm, roll 850 m
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 1850 N
- tube 406 mm, roll 2000 m
PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2000N
- tube 406 mm, roll 2200 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 400 mm, roll 3000 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
- width 15 mm, thickness 0,65 mm
- white, cross strapped
- strength 2200 N
- tube 200, roll 2000 m
PP strap 15 x 0,65 mm, 400/180 - 1500 m, 2200 N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 400, roll 1500 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 200, roll 2000 m
PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
- width 15 mm, thickness 0,80 mm
- black color
- strength 2700 N
- tube 400 mm, roll 1500 m
PP strap 19 x 0,90 mm, 200/190 - 1200 m, 4050 N, black
- width 19 mm, thickness 0,90 mm
- black color
- strength 4050 N
- tube 200 mm, roll 1200 m
