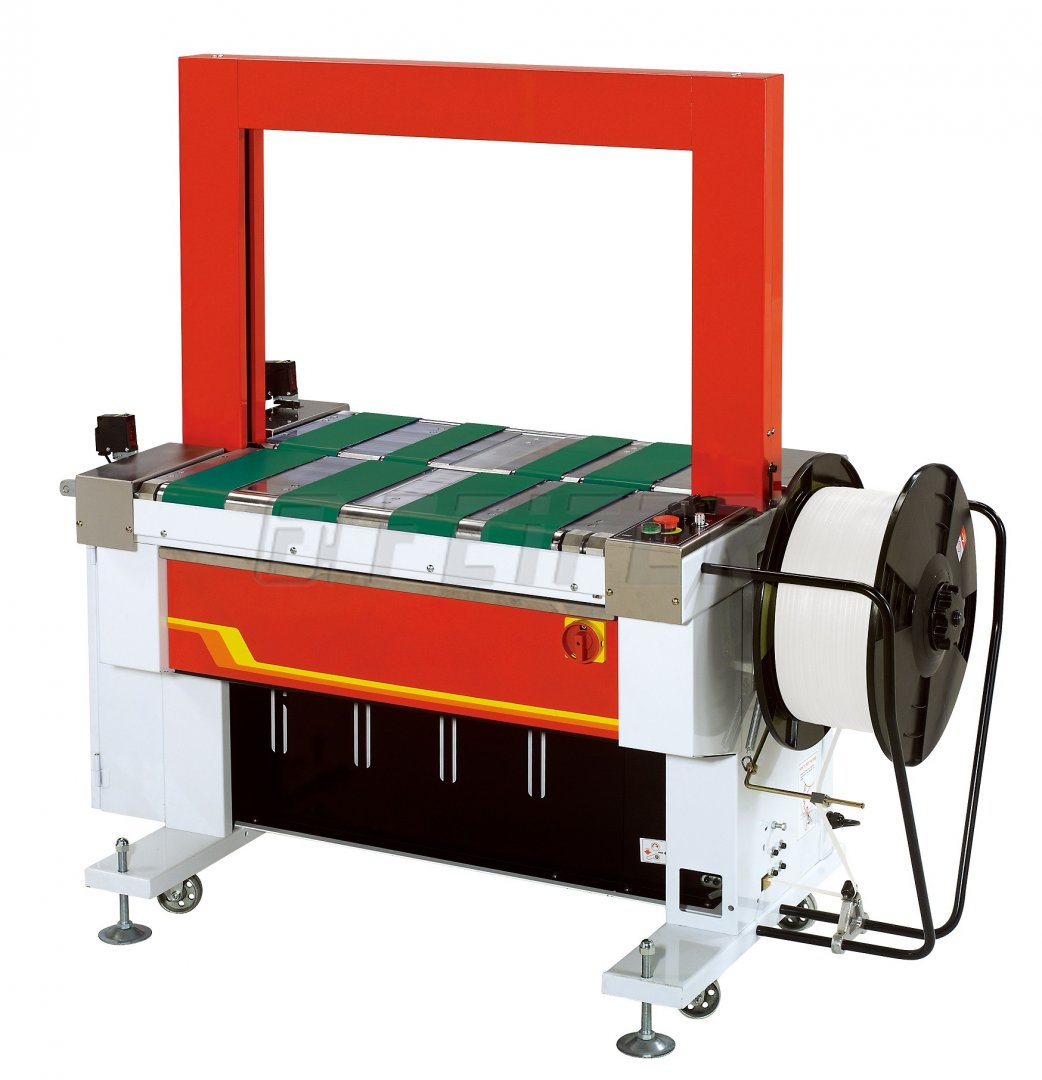

TP-601B - fully-automatic PP strapping machine
Full-automatic strapping machine TP-601B for PP straps is intended for strapping cartons, transport boxes, etc. The machine is equipped with motor driven belt conveyors. The machine is able to work in semi-automatic or automatic working mode.
Among main advantages of this strapping machine belong:
- motor driven roller conveyors
- high strapping capacity
- easy operating
- reliability
- programmable control unit which enables to use own error and service diagnostics
- adjustable tightening power from 7 to 70 kgs
The machine works with strap of the width of 8-12 mm (depends on modification) with inner diameter of coil of 200 mm.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 022448 |
| supply voltage | 230V/50Hz |
| strap - material |
PP |
| strap width | 8 - 12 mm |
| power input | 0,72 kW |
| tightening power | 70 - 700 N |
| packing rate | 28 straps/min. |
| inner diameter of roll | 200 mm |
| working desk height | 820 mm |
| dimension (l x w x h) | 1300 x 706 x 1810 mm |
| weight | 325 kg |
Standard modifications
TP-702B MERCURY TRANSIT - fully-automatic PP strapping machine
- strap width - 5 - 12 mm
- max. packing rate 65 straps/min.
- motor driven belt conveyor
- high level of automation
Recommended accessories
DH - driven extensible roller conveyor 500mm, track 1050-2200 mm
- track width - 500 mm
- extensible, track -1050-2200 mm
- 20 rollers
DH - driven extensible roller conveyor 500mm, track 1650-3570 mm
- track width - 500 mm
- extensible, track -1650-3570 mm
- 32 rollers
DH - driven extensible roller conveyor 500mm, track 2250-4950 mm
- track width - 500 mm
- extensible, track -2250-4950 mm
- 44 rollers
Driven belt conveyor 4000x400 mm
- fluent speed regulation
- track width - 400 mm
- conveyor length - 4 m
Driven roller conveyor 2000x400 mm
- motor driven with soft slip of rollers
- track width - 400 mm
- conveyor length - 2 m
- standardly with plastic rollers
Driven roller conveyor 5000x400 mm
- motor driven with soft slip of rollers
- track width - 400 mm
- conveyor length - 5 m
- standardly with plastic rollers
DH - driven extensible roller conveyor 600mm, track 1050-2200 mm
- track width - 600 mm
- extensible, track -1050-2200 mm
- 20 rollers
DH - driven extensible roller conveyor 600mm, track 1650-3570 mm
- track width - 600 mm
- extensible, track -1650-3570 mm
- 32 rollers
DH - driven extensible roller conveyor 600mm, track 2250-4950 mm
- track width - 600 mm
- extensible, track -2250-4950 mm
- 44 rollers
Binding and packaging materials
PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, black
- width 8 mm, thickness 0,55 mm
- black color
- strength 950 N
- tube 200 mm, roll 4500
PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, white
- width 8 mm, thickness 0,55 mm
- white color
- strength 950 N
- tube 200 mm, roll 4500
PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black
- width 10 mm, thickness 0,40 mm
- black color
- strenght 1160 N
- tube 200 mm, roll 3500 m
PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, natural (white)
- width 10 mm, thickness 0,40 mm
- natural color (white)
- strenght 1160 N
- tube 200 mm, roll 3500 m
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
