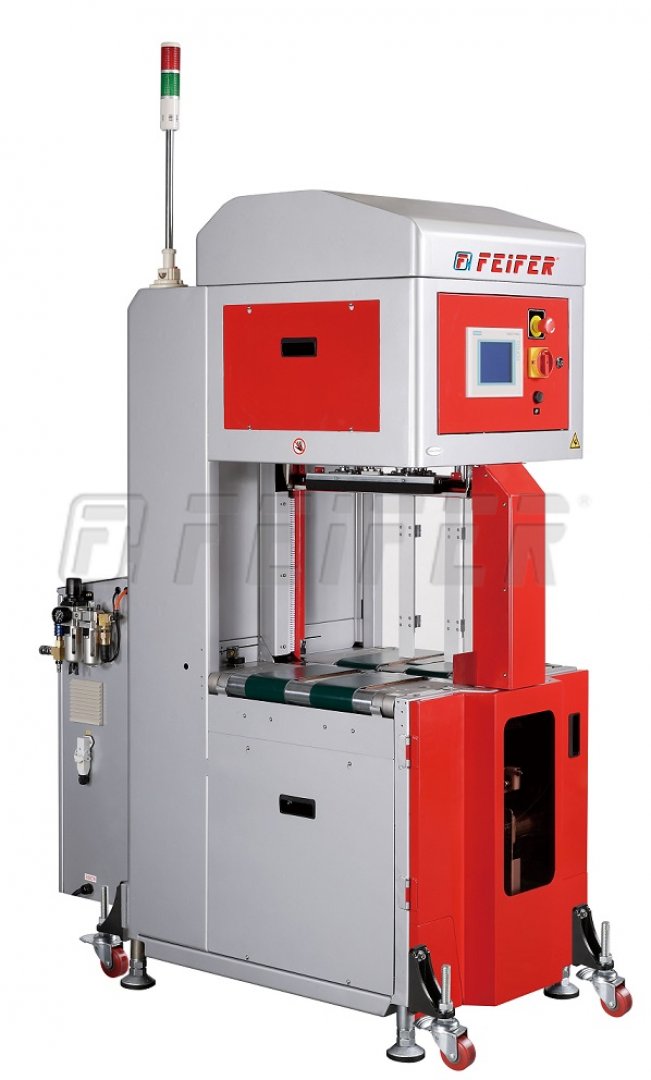

TP-702NS SINGLE - fully-automatic PP strapping machine
The high speed fully automatic strapping machine TP-702NS SINGLE is designed for single and parallel strapping of prints in the line direction and is suitable for high strapping frequency up to 30 packages/min. . There is used polypropylene strap (PP) with width of 5-6 mm for strapping. The machine is able to work in semi-automatic or fully automatic working mode.
Among main advantages of this strapping machine belong:
- patented system of strap feeding to the machine
- automatic strap feeding to the machine
- loop-eject clears unwanted strap automatically, if the machine is strapped without any package
- automatic opening of arch in case of malfunction
- min. outer dimensions
- adjustable tensioning power depends on package dimensions
- fluently adjustable tightening power from 1 – 32 kg (for 5-9mm) or 1-45 kg (for 12 mm strap)
- pressure arm for flat items
- fluently ajdustable pressure power
- fluently adjustable conveyor speed
- high safety of the machine operator (control, motors and heater are „stepped down“ to 24 V)
Max. performance 42 straps/min. for single or parallel strapping and 24 straps/min. for cross strapping. The machine has fully connectable safety system with the most advanced DC servo motors. Significantly lower amount of moving parts compared to competitive machines reduce maintenance and service. The machine has unique one-piece arch made from sturdy material.
This strapping machine is desgined for the polygraphic industry.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 008314 |
| supply voltage | 230V/50Hz |
| strap - material |
PP |
| strap width | 5 - 6 (8 - 9) mm |
| strap thickness | 0,5 mm |
| power input | 1 kW |
| inner diameter of roll | 200 mm |
| packing rate | 42 straps/min. |
| arch width | 550 mm |
| arch height | 400 mm |
| min. size of wrapped object | 120 x 150 x 10 mm |
| max. size of wrapped object | 500 x ∞ x 400 mm |
| machine length | 1230 mm |
| machine width | 776 mm |
| machine height | 2400 mm |
| weight | 420 kg |
Standard modifications
TP-702NIL TANDEMS - fully-automatic PP strapping machine
- strap width - 5 - 6 or 8 - 9 mm
- max. packing rate 31 straps/min.
- cross strapping
- intended for polygraphic industry
Recommended accessories
Driven belt conveyor 4000x400 mm
- fluent speed regulation
- track width - 400 mm
- conveyor length - 4 m
Driven roller conveyor 2000x400 mm
- motor driven with soft slip of rollers
- track width - 400 mm
- conveyor length - 2 m
- standardly with plastic rollers
Driven roller conveyor 5000x400 mm
- motor driven with soft slip of rollers
- track width - 400 mm
- conveyor length - 5 m
- standardly with plastic rollers
DH - driven extensible roller conveyor 500mm, track 1050-2200 mm
- track width - 500 mm
- extensible, track -1050-2200 mm
- 20 rollers
DH - driven extensible roller conveyor 500mm, track 1650-3570 mm
- track width - 500 mm
- extensible, track -1650-3570 mm
- 32 rollers
DH - driven extensible roller conveyor 500mm, track 2250-4950 mm
- track width - 500 mm
- extensible, track -2250-4950 mm
- 44 rollers
Binding and packaging materials
PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)
- width 5,5 mm, thickness 0,50 mm
- natural color (white)
- strength 700 N
- tube 200 mm, roll 5000 m
