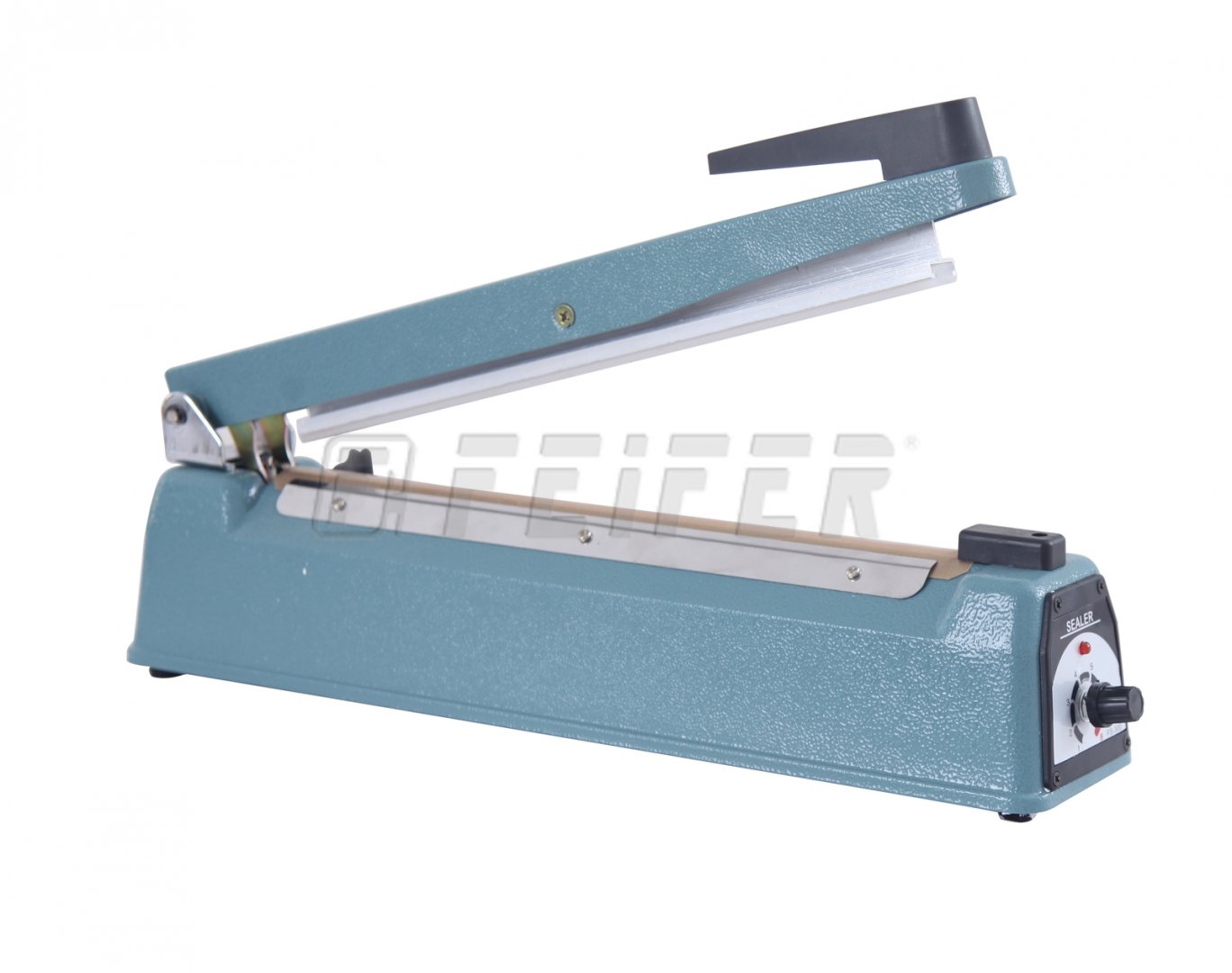

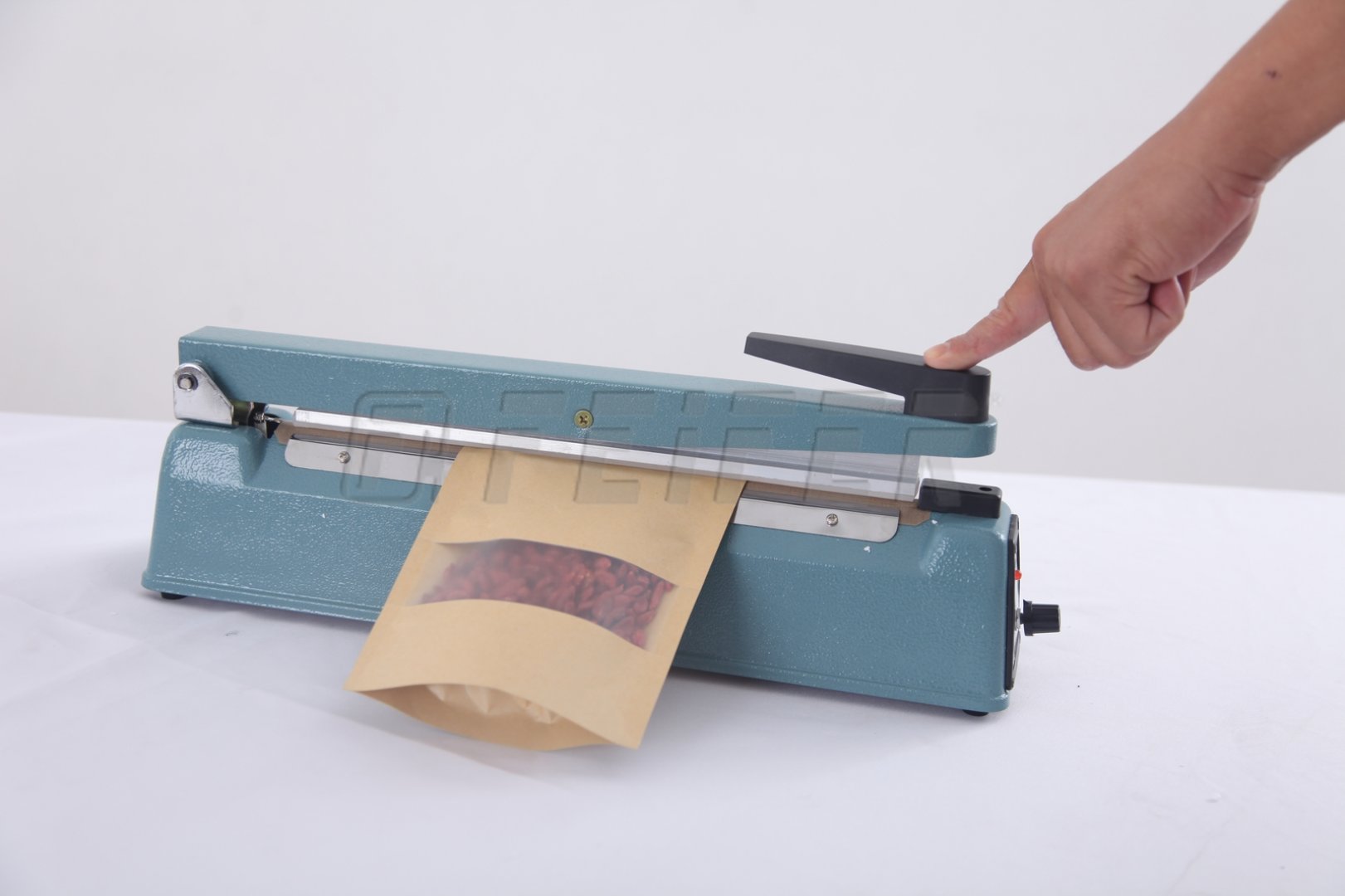

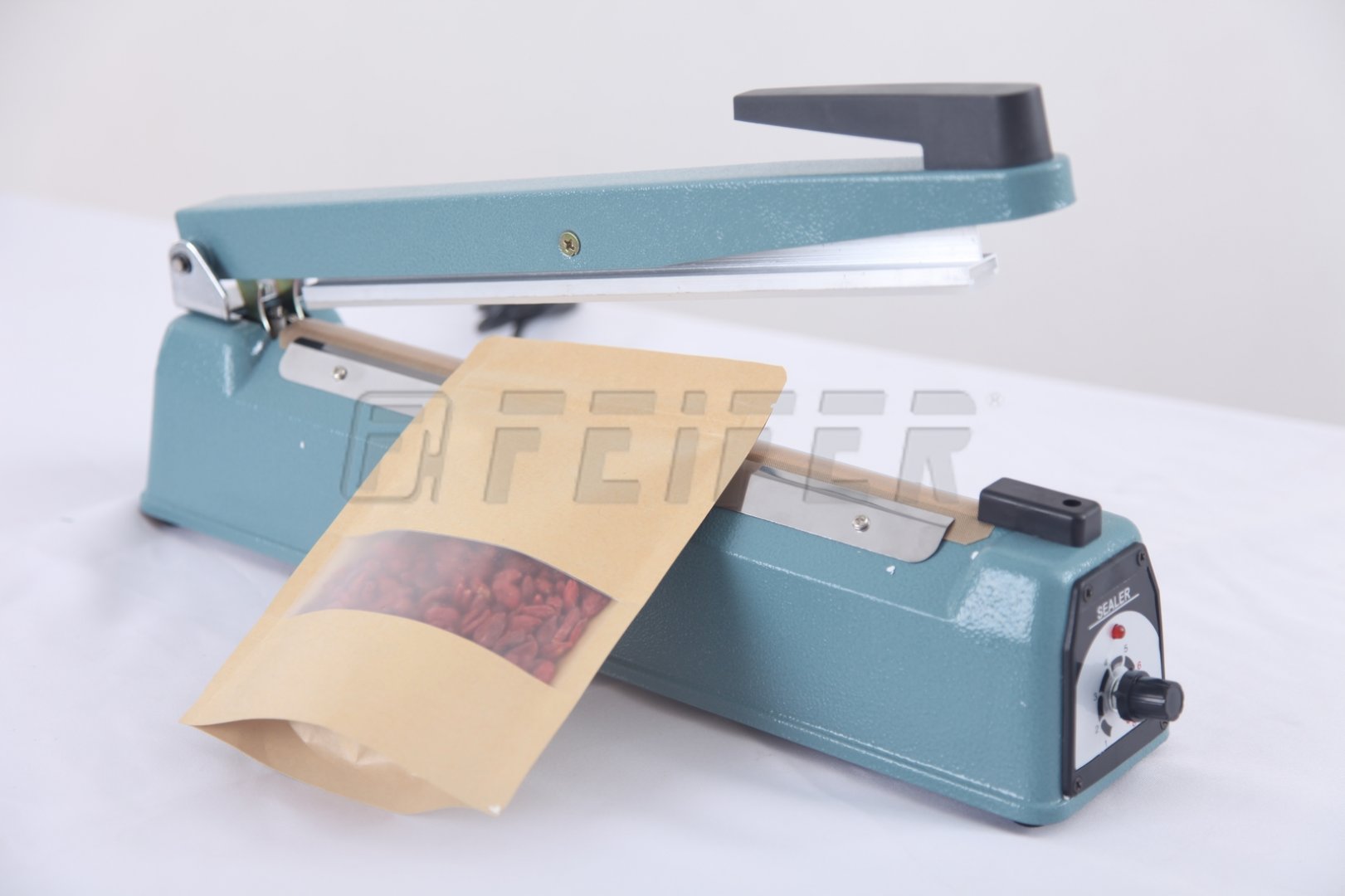

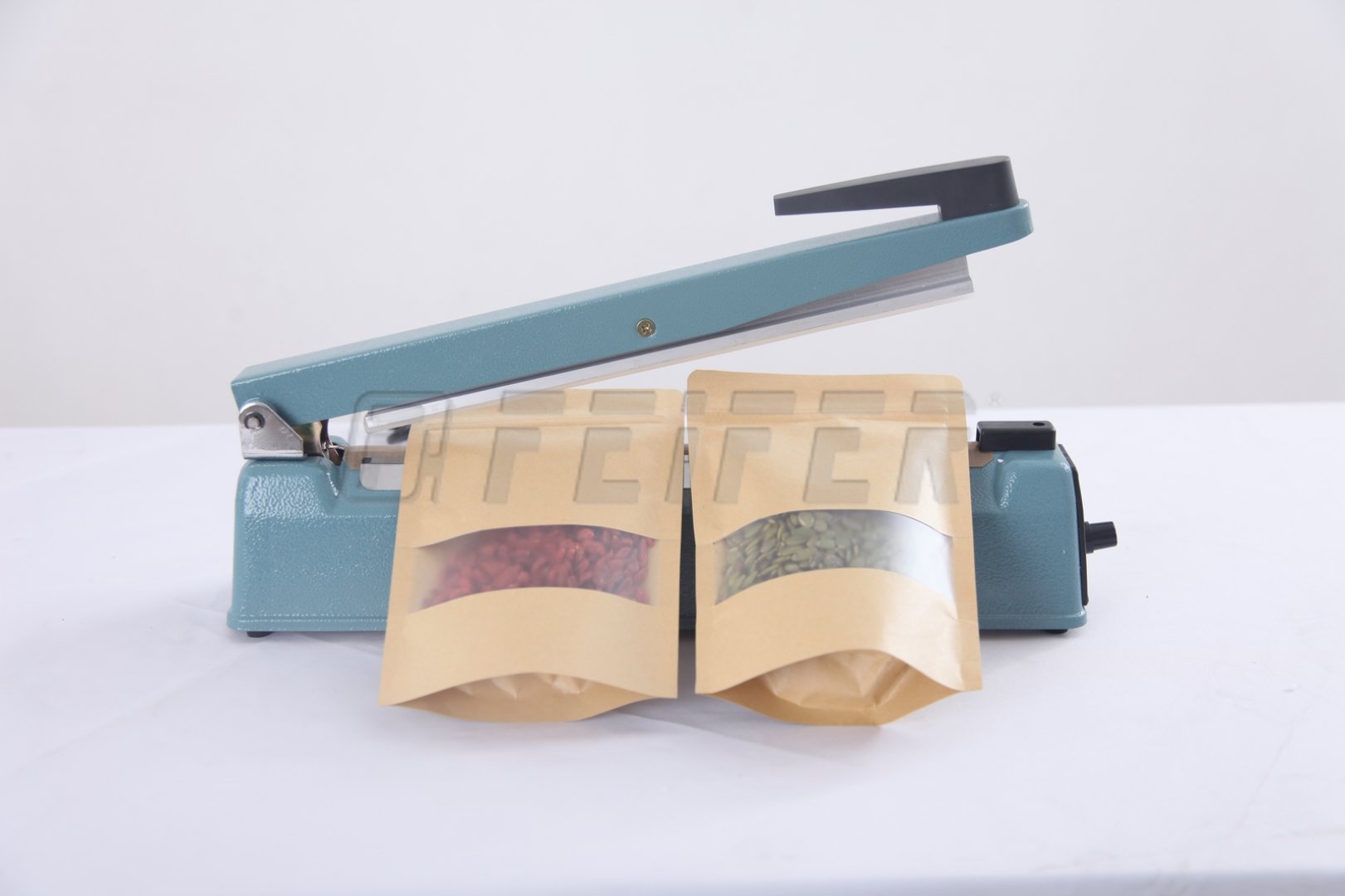

HI-500 (FS-500) - impulse sealer
Table model HI-500 intended only for closing foil bags. This model is intended for seals of length of 500 mm. Seal is performed by kanthal sealing element of the width of 2 mm. This sealer is suitable for non-series usage.
Modifications of this impulse sealer are HI-200 with sealing lenght to 200 mm, HI-300 with sealing lenght to 300 mm and HI-400 with sealing lenght to 400 mm.
Technical parameters
Modification
Accessories
Inquiry
Technical parameters
| ordering code | 700 023993 |
| power input | 0,95 kW |
| sealing arm holding | manual |
| weight | 6 kg |
| max. film thickness | 100 µm |
| max. sealing length | 500 mm |
| sealing width | 2 mm |
Standard modifications
HI-200 (FS-200) - impulse sealer
- sealing length 200 mm
- for closing film bags
- sealing width 2 mm
- suitable for non-series usage
HI-300 (FS-300) - impulse sealer
- sealing length 300 mm
- for closing film bags
- sealing width 2 mm
- suitable for non-series usage
HI-400 (FS-400) - impulse sealer
- sealing length 400 mm
- for closing film bags
- sealing width 2 mm
- suitable for non-series usage
HI-600 (FS-600H) - impulse sealer
- sealing length 600 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HI-800 (FS-800H) - impulse sealer
- sealing length 800 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HI-800IP - impulse sealer
- sealing length 800 mm
- built-in decoiler
- sealing wire
- built-in thermistor
HI-1000 (FS-1000H) - impulse sealer
- sealing length 1000 mm
- professional table models
- sealing blade or sealing wire
- built-in thermistor
HC-300 (FS-300M) - impulse sealer with built-in-blade
- sealing length 300 mm
- table model with cutting blade
- sealing width 2 mm
- for production and closing bags
HC-400 (FS-400C) - impulse sealer with built-in-blade
- sealing length 400 mm
- table model with cutting blade
- sealing width 2 mm
- for production and closing bags
HC-500 - impulse sealer with built-in-blade
- sealing length 500 mm
- table model with cutting blade
- sealing width 2 mm
- for production and closing bags
Recommended accessories
OF-300 - PE film decoiler
- for film width up to 300 mm
- fluent unwinding guide
- accessory for impulse sealers
OF-600 - PE film decoiler
- for film width up to 600 mm
- fluent unwinding guide
- accessory for impulse sealers
